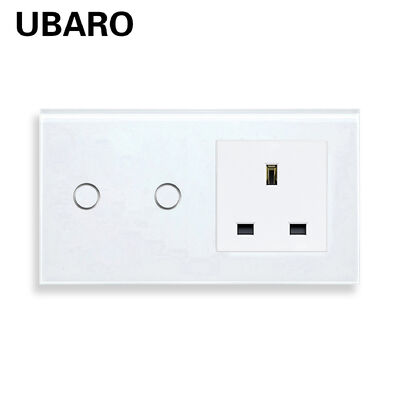

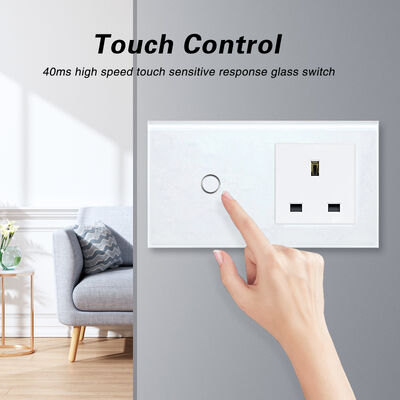

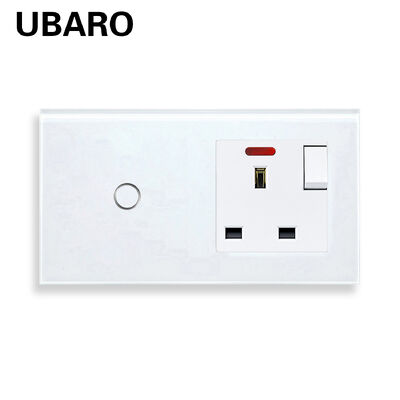

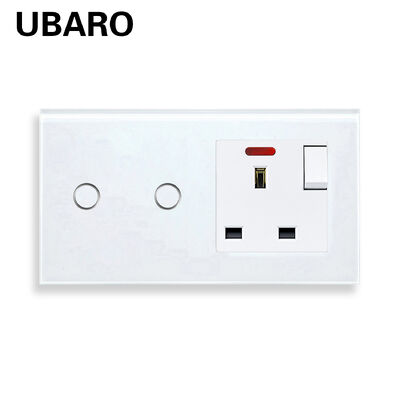

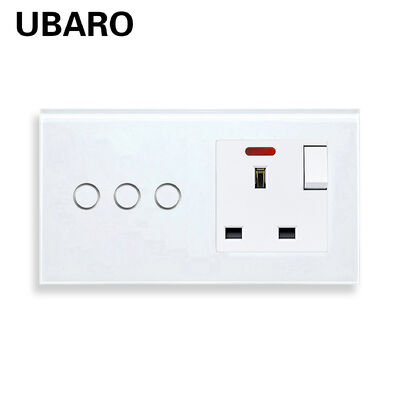

146*86*35mm Tempered Glass Panel Fireproof 94V0 Touch Button Switch and UK Standard Socket for Home Use

146*86*35mm Tempered Glass Panel Fireproof 94V0 Touch Button Switch and UK Standard Socket for Home Use

Brand Name: UBARO
Model Number: UK-146-WW3X-C1
MOQ: 10pcs
Price: Negotiations
Payment Terms: L/C,T/T,Western Union
Supply Ability: 1000pcs/day
Detail Information
Place of Origin:
Shenzhen China
Certification:
CE ROHS
Product Size:
146*86*35mm
Packing Size:
159*95*40mm
Gw/pcs:
270g/pcs
Carton Size:
37*28*30cm
Package:
40pcs/ctn 11.5kg/ctn
Packaging Details:
Colorful box per pcs
Supply Ability:
1000pcs/day
Highlight:

146*86*35mm Touch Button Switch

,

Tempered Glass Panel UK Standard Socket

,

Fireproof 94V0 Switch and Socket Combination

Product Description
Single Live Wire Control Touch Button Switch with UK Standard Socket
Product Overview

Premium 146*86*35mm glass panel touch switch and socket combination featuring fireproof 94V0 plastic construction. Designed for residential use in UK, Middle East, and African markets.

Switch Specifications
Item Type
Touch On/Off Switch
Product Standard
UK
Control Mode
Single Live Wire Control
Input Voltage
100-240V AC 50/60Hz
Output Power
5-300W per gang (LED: 5-150W per gang)
Working Mode
Manual Touch
Touch Life
100,000 cycles
Operating Environment
-20°C to 50°C, Less than 95% RH
Power Consumption
Less than 0.5W
Indicator Light
On - Red / Off - Blue
Socket Specifications
Product Item

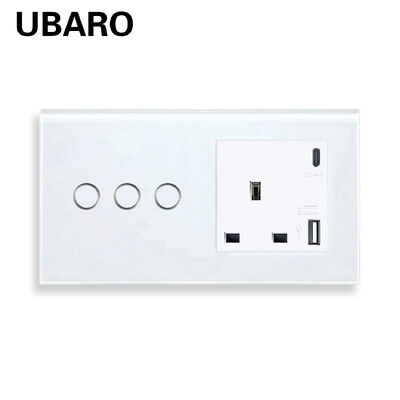

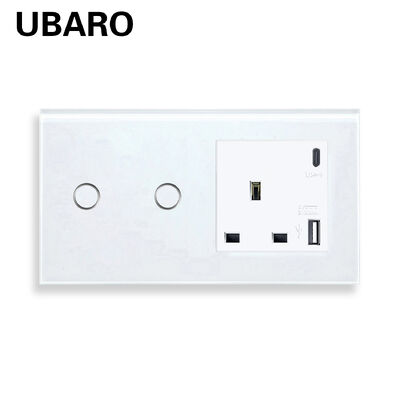

Socket & USB Socket
Socket Standard
UK Standard
Input Voltage
110-250V AC 50/60Hz
Max Output Current
12A
Max Load Power
2800W
USB Output
5V / 2100mA
Input Wire Interface
L/N/GND
Internal Wiring
Bronze
Construction & Materials
Panel Material
Tempered Glass

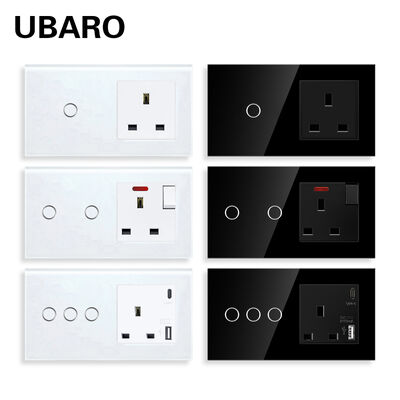

Panel Colors
White, Black, Gold, Gray
Shell Material
Fireproof 94V0 Plastic
Product Dimensions
146 * 86 * 35mm
Compatible Applications
LED lighting systems
Energy-saving lamps
Halogen lighting
Incandescent lamps
Home and residential installations
Installation Note: For lamp power less than 5W, installation of a capacitor is required.

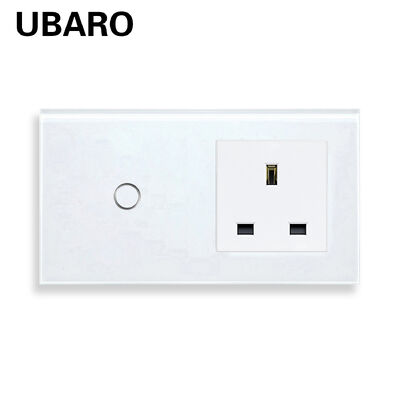

146*86*35mm Tempered Glass Panel Fireproof 94V0 Touch Button Switch and UK Standard Socket for Home Use 0

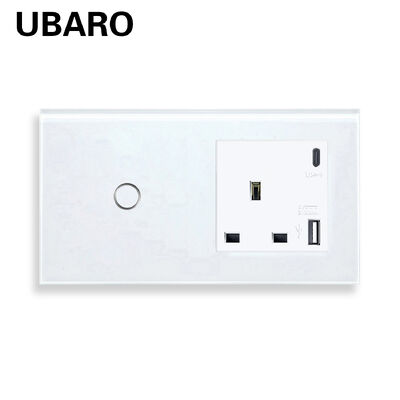

146*86*35mm Tempered Glass Panel Fireproof 94V0 Touch Button Switch and UK Standard Socket for Home Use 1

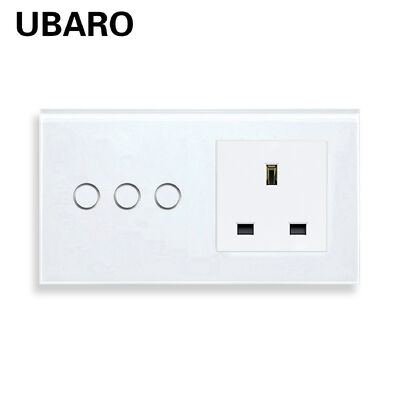

146*86*35mm Tempered Glass Panel Fireproof 94V0 Touch Button Switch and UK Standard Socket for Home Use 2
