UBARO 1gang Tempered Glass Touch Light Switch Panel with 100-240VAC Input and Single Live Wire Control

UBARO 1gang Tempered Glass Touch Light Switch Panel with 100-240VAC Input and Single Live Wire Control

Brand Name:	UBARO
Model Number:	ZS-WW01X
MOQ:	1PCS
Price:	Price negotiable
Supply Ability:	5000pcs

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Installation Box:

Square Or Round Box

Operating Environment:

-20℃～+55℃

Shell Material:

Fireproof:

94-V1

Input Voltage:

100-240VAC 50/60Hz

Certificate:

CE Rohs FCC

Panel Material:

Tempered Glass Panel

Led Indicator:

On-red /Off-blue

Size:

86*86*35mm

Packaging Details:

50pcs/carton cartons size:38.5*26.3*21cm 6.6kg/CTN packing size:95*95*40mm 122g/pcs

Supply Ability:

5000pcs

Highlight:

1gang Tempered Glass Touch Switch Panel

86*86mm Tempered Glass Touch Switch Panel

Product Description

UBARO 1-Gang Tempered Glass Touch Switch Panel

Key Features

Single Live Wire Control: Easy installation without complex rewiring
Wide Voltage Range: Compatible with 100V-240VAC systems
Blue LED Status Indicator: Clear visual feedback for switch status
EU/UK Standard Compliance: Meets safety and regulatory requirements

Technical Specifications

Brand Name	UBARO
Configuration	1-gang, 2-gang, 3-gang options
Available Colors	Black, White, Gold, Grey
Dimensions	86×86×35mm (3.4×3.4×1.4 inches)
Current Rating	10A
Power Capacity	Normal lamps: 3-300W/gang, LED: 5-150W/gang
Working Voltage	100V-240V AC
Operating Temperature	-20℃ to +55℃
Relative Humidity	10% to 95%
Mechanical Life	100,000 cycles
Certifications	CE, FCC, ROHS
Warranty	1 year

Tempered Glass Panel Advantages

Enhanced Sensitivity: High-responsive touch interface similar to smartphone screens
Superior Protection: Fireproof rating 94V-0 for enhanced safety against short circuits
Waterproof Design: Safe operation with wet hands and moisture-resistant construction
Easy Maintenance: Simple cleaning with standard cloths without damaging functionality
LED Status Indicators: Red when on, blue when off for clear operational status

Frequently Asked Questions

Do you have an LED indicator design on your panel?

Yes, all our touch switches feature LED indicators. Red when on, blue when off.

Is the switch easy to install?

This is a single live wire control switch requiring no neutral wire. Installation videos are available for guidance.

Do I need to install a capacitor?

Capacitors are not necessary unless your lamp flickers or is a smart dimming lamp. For standard lamps exceeding 5W total power, no capacitor is needed.

Is this product a smart switch?

No, this is not a smart Wi-Fi enabled switch.

How long does shipping take for small orders?

Standard products are typically shipped within two days from order receipt.

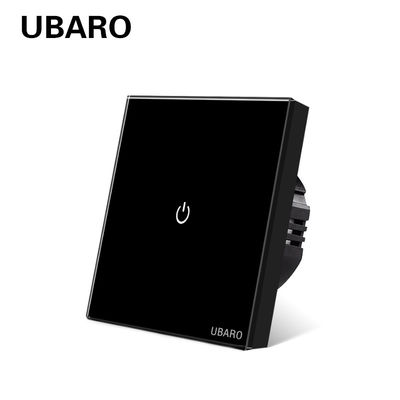

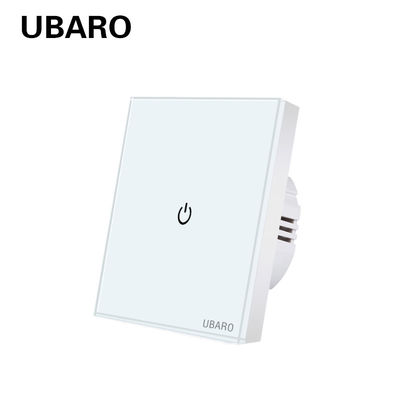

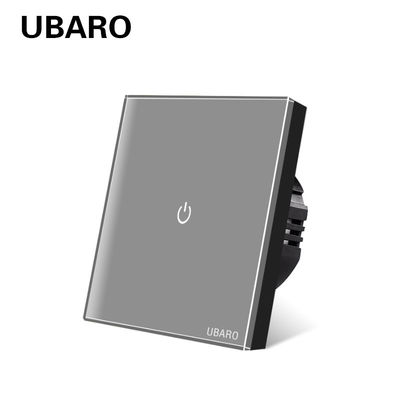

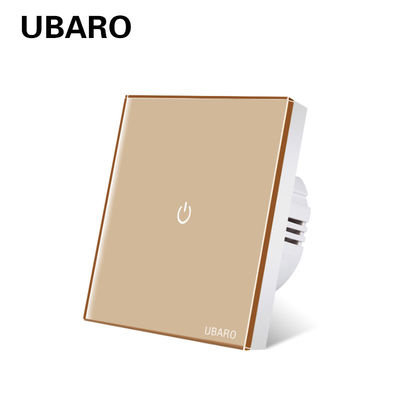

Product Images
